Ctube LSZH 1/2 – 8 in Schedule 80 PVC Electrical Conduit Pipe

Quality Certification:

– UL Listed

– Compliance with CSA, ETL, and ASTM

Accreditation: ISO 9001, ISO 14001, ISO 45001

Product Details & Specifications

Ctube Low Smoke Halogen Free Schedule 80 PVC Electrical Conduit

Ensure fire safety and long-lasting performance with the
Ctube LSHF Schedule 80 PVC Conduit. Designed for use in safety-critical environments, it provides
low smoke, halogen-free performance while meeting UL and NEC requirements for commercial, residential, and infrastructure projects.

Key Features

Low Smoke Halogen Free (LSHF):
Emits minimal smoke and no toxic halogen gases — ideal for enclosed public spaces like hospitals, schools, and transit areas.
UL Listed:
Fully compliant with UL 651 standards for electrical installations across the US and Canada.
High Flame Rating – UL 94V-0:
Self-extinguishing material that stops burning once the fire source is removed.
Durable & Non-Metallic:
Resistant to corrosion, chemicals, UV, and impact, making it suitable for outdoor and industrial environments.
Multi-Application Use:
Approved for aboveground, underground, concrete-embedded, or direct burial installations.
Customizable:
Wall thickness and color options can be tailored to your specifications.

Typical Applications

Electrical systems in data centers, public facilities, transport terminals, and smart buildings

Fire-rated cable management systems

Locations requiring strict smoke and toxicity control, such as:

✔
Airports & Railways
✔
Hospitals & Laboratories
✔
Schools & Government Buildings
✔
Tunnels & Underground Infrastructure

Property	Value
Tensile Strength	5000 psi (3.45 kN/cm²)
Water Absorption	< 0.50% after 24h soak
Impact Resistance	< 3 cracks of 1/32 inch
Deflection Under Load	< 0.25 mm deformation
Fire Rating	UL 94V-0
Resistance to Reagents	±2.5% weight change (60/120-day soak)
Printing Permanency	Yes
Rust & UV Resistance	Yes
Smoke & Halogen Emission	Low smoke, halogen-free
Color	Standard grey or custom
Length	10 ft or 20 ft
Material	Low smoke halogen free PVC

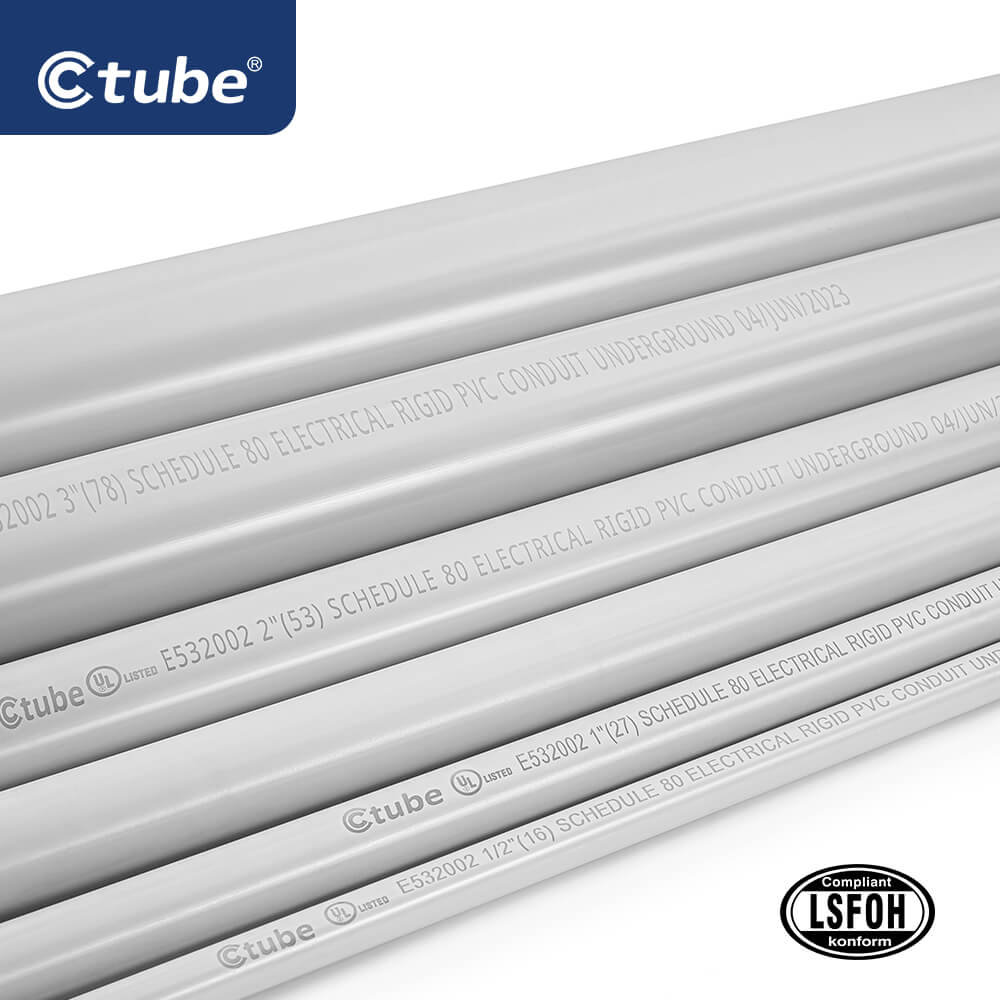

Marking & Identification (per UL 651)

“Rigid PVC Conduit” clearly marked on each conduit

Trade size (e.g., 1/2″, 1″, etc.)

Manufacturer’s name or trademark

Production date (no more than 3-month batch)

Fire rating, standard references, and other compliance marks

Markings repeat every 10 feet minimum

Watch: Ctube LSHF Schedule 80 Conduit in Action

See how our low-smoke, halogen-free conduit performs in demanding environments.

Manufacturing & Quality

Production Capacity: 100,000 meters per week

Quality System: ISO 9001:2015 certified

Certifications: UL, CSA, IEC compliant

Packaging: Plastic bags and PE films

Origin: Dongguan, China

Shipping: By sea

Why Choose Ctube LSHF Schedule 80 Conduit?

Fire-safe and low-toxicity performance

Lightweight and easy installation

Long service life in harsh environments

Full UL compliance and flexible customization

Questions & Answers

1.What is your MOQ?

Actually, It has always depend on your order quantity, different items have different minimum quantity . As for our conduits, it should be 3000 meters for big size ; and 5000 -10000 meters for small size. For junction box and other boxes ,the moq may be 5000 pcs and the fittings would be more than 10,000pcs

2.What is your delivery time?

Normally, the time of delivery is around 15-30 days. It depend on your order quantity. If you order a big quantity, it will take more time to finish.

3.What is your payment term?

Our company accepts normally T/T, and L/C payments. Call or email us if you need to use any new payment procedures.

4.Can I visit your facilities?

Yes, you are welcome to visit our company, and please make an appointment with us in advance;

5. How about free sample?

Yes,of course.We offer free samples.

6.What are your main products?

Besides Solar PVC conduits and fittings. Also offer UL listed and CSA electrical pvc conduit; AS/NZS 2053 conduit &fittings; Low smoke and halogen free conduit& fittings; BS conduit &fittings.

7.Where is your factory located？

We have manufacturing bases in Dongguan City and Shaoguan City of China
